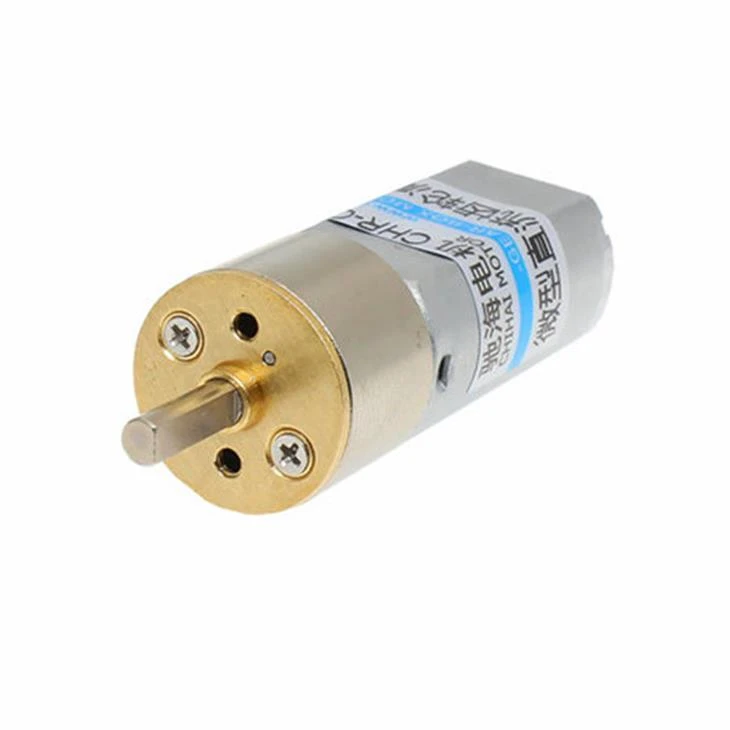

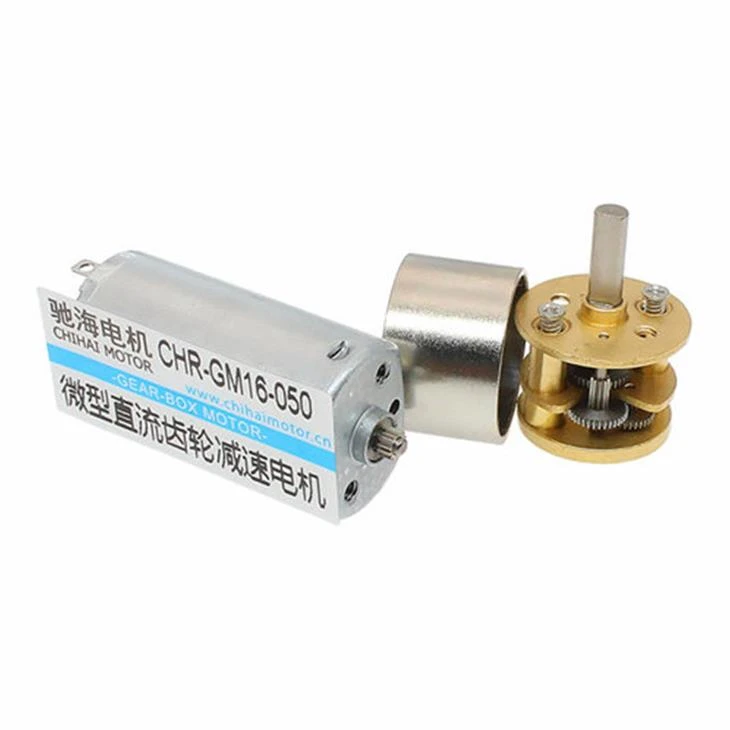

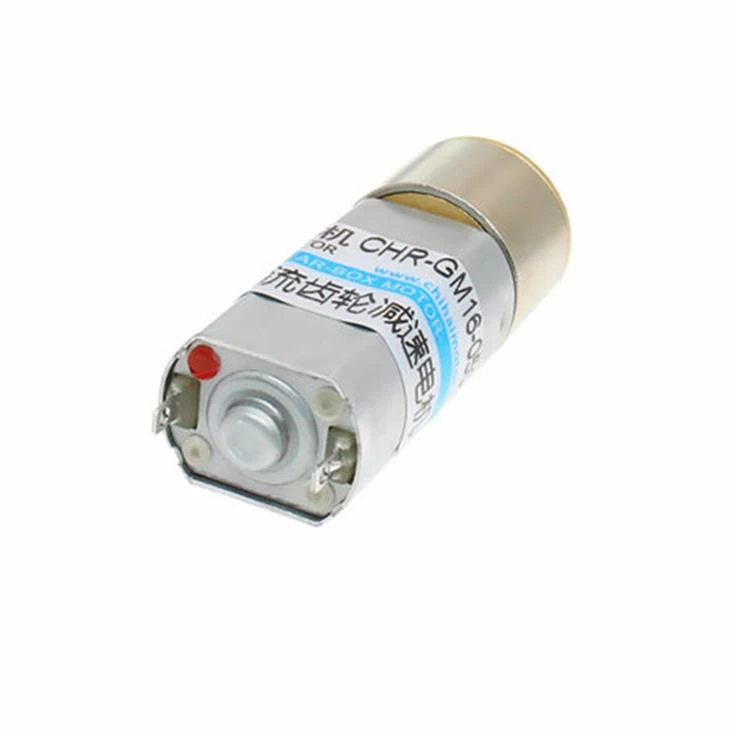

Ta'lim roboti uchun 16mm tishli dvigatel
Hajmi: diametri 15.5mm
Chiqish milining uzunligi: 10 mm D
Milning diametri: 3 mm
Model: CHR-GM16-050SHV
Mahsulot tavsifi
Roduct turi | CHR-GM16-050SHV tishli motorlar |
Hajmi | diametri 15.5mm |
Chiqish milining uzunligi | 10 mm D |
Milning diametri | 3 mm |
Kuchlanish oralig'i | DC3-24V |
Taxminan bitta vazn | taxminan 25 gr |
Mahsulot parametrlari
Texnik xususiyatlari | |||||||||
Model: CHR-GM16-050PA | |||||||||
Qutqarish koeffitsienti | 1 sentyabr10 | 1 sentyabr20 | 1:35 | 1-663 | 1 asr86 | 1: 115 | 1: 150 | 1: 250 | 1: 360 |
Yuklamaydigan oqim (mA) | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 |
Yuklanish tezligi (ay / min) | 415 | 208 | 119 | 66 | 48 | 36 | 28 | 17 | 12 |
Nominal moment (g.cm) | 23 | 46 | 80 | 144 | 197 | 264 | 345 | 575 | 828 |
Nomlangan yuk tezligi (rpm) | 365 | 182 | 100 ga | 57 | 42 | 21 | 24 | 14 | 10 |
Nominal yuklanish oqimi (mA) | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 |
Otish momenti (kg.sm) | ≥0.2 | ≥0.4 | ≥0.7 | ≥1.2 | ≥1.7 | ≥2.3 | maksimal moment 3.0kg.cm | ||
To'xtash oqimi (mA) | 00600 | 00600 | 00600 | 00600 | 00600 | 00600 | 00600 | 00600 | 00600 |
Kuchlanish: DC3.0V kirish motorining modeli 1672 (16 #) | |||||||||
Qutqarish koeffitsienti | 1 sentyabr10 | 1 sentyabr20 | 1:35 | 1-663 | 1 asr86 | 1: 115 | 1: 150 | 1: 250 | 1: 360 |
Yuklamaydigan oqim (mA) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 |
Yuklanish tezligi (ay / min) | 1000 | 500 | 285 | 159 | 115 | 87 | 67 | 40 | 28 |
Nominal moment (kg.sm) | 0,06 | 0,11 | 0,2 | 0,35 | 0,5 | 0,6 | 0,8 | 1.25 | 1.25 |
Nomlangan yuk tezligi (rpm) | 600 | 300 | 200 | 110 | 80 | 60 | 45 | 27 | 21 |
Nominal yuklanish oqimi (mA) | 50450 | 50450 | 50450 | 50450 | 50450 | 50450 | 50450 | 50450 | 50450 |
Otish momenti (kg.sm) | 0,2 | 0,4 | 0,7 | 1.2 | 1.7 | 2.4 | maksimal moment 3.0kg.cm | ||
To'xtash oqimi (A) | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
Kuchlanish: DC6.0V kirish motor 11170 (11 #) | |||||||||
Qutqarish koeffitsienti | 1 sentyabr10 | 1 sentyabr20 | 1:35 | 1-663 | 1 asr86 | 1: 115 | 1: 150 | 1: 250 | 1: 360 |
Yuklamaydigan oqim (mA) | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 |
Yuklanish tezligi (ay / min) | 840 yil | 420 | 240 | 133 | 98 | 73 | 56 | 34 | 24 |
Nominal moment (g.cm) | 45 | 90 | 158 | 284 | 387 | 518 | 675 | 1125 yil | 1620 yil |
Nomlangan yuk tezligi (rpm) | 725 | 363 | 207 | 115 | 84 | 63 | 48 | 29 | 20 |
Nominal yuklanish oqimi (mA) | 50150 | 50150 | 50150 | 50150 | 50150 | 50150 | 50150 | 50150 | 50150 |
Otish momenti (kg.sm) | ≥0.4 | ≥0,8 | ≥1.4 | maksimal moment 3.0kg.cm (0.3Nm) | |||||
To'xtash oqimi (mA) | 00900 | 00900 | 00900 | 00900 | 00900 | 00900 | 00900 | ||
Kuchlanish: DC6.0V kirish motor 13120 (13 #) | |||||||||
Qutqarish koeffitsienti | 1 sentyabr10 | 1 sentyabr20 | 1:35 | 1-663 | 1 asr86 | 1: 115 | 1: 150 | ||
Yuklamaydigan oqim (mA) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ||
Yuklanish tezligi (ay / min) | 1200 ga teng | 600 | 375 | 190 | 139 | 105 | 80 | ||
Nominal moment (g.cm) | 26 | 52 | 91 | 164 | 224 | 300 | 391 | ||
Nomlangan yuk tezligi (rpm) | 490 | 308 | 160 | 100 ga | 60 | 85 | 20 | ||
Nominal yuklanish oqimi (mA) | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ||
Otish momenti (kg.sm) | 0,1 | 0,3 | 0,5 | 0,8 | 1.1 | 1.5 | 2 | ||
To'xtash oqimi (mA) | ≤950 | ≤950 | ≤950 | ≤950 | ≤950 | ≤950 | ≤950 | ||
Kuchlanish: DC6.0V kirish motorining modeli 1672 (16 #) | |||||||||
Qutqarish koeffitsienti | 1 sentyabr10 | 1 sentyabr20 | 1:35 | 1-663 | 1 asr86 | 1: 115 | 1: 150 | ||
Yuklamaydigan oqim (mA) | ≤170 | ≤170 | ≤170 | ≤170 | ≤170 | ≤170 | ≤170 | ||
Yuklanish tezligi (ay / min) | 2000 yil | 1000 | 570 | 317 | 230 | 173 | 133 | ||
Nominal moment (kg.sm) | 0,11 | 0,22 | 0,4 | 0,7 | 1.0 | 1.2 | 1.6 | ||
Nomlangan yuk tezligi (rpm) | 1200 ga teng | 600 | 400 ga teng | 220 | 160 | 120 | 90 | ||
Nominal yuklanish oqimi (mA) | 00900 | 00900 | 00900 | 00900 | 00900 | 00900 | 00900 | ||
Otish momenti (kg.sm) | 0,4 | 0,85 | 1.5 | 2.5 | maksimal moment 3.0kg.cm | ||||
To'xtash oqimi (A) | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | ||
Kuchlanish: DC12.0V kirish motorining 07340 modeli (34 #) | |||||||||
Qutqarish koeffitsienti | 1 sentyabr10 | 1 sentyabr20 | 1:35 | 1-663 | 1 asr86 | 1: 115 | 1: 150 | ||
Yuklamaydigan oqim (mA) | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ||
Yuklanish tezligi (ay / min) | 800 | 400 ga teng | 228 | 126 | 93 | 69 | 53 | ||
Nominal moment (g.cm) | 60 | 120 | 200 | 380 | 500 | 700 | 900 ga teng | 1500 | 2160 yil |
Nomlangan yuk tezligi (rpm) | 600 | 300 | 170 | 90 | 65 | 50 ga teng | 40 | 24 | 15 |
Nominal yuklanish oqimi (mA) | 80180 | 80180 | 80180 | 80180 | 80180 | 80180 | 80180 | 80180 | 80180 |
Avtotransport momenti (g.cm) | 50250 | 00500 | 00900 | ≥1500 | ≥2200 | maksimal moment 3.0kg.cm | |||
To'xtash oqimi (mA) | 60360 | 60360 | 60360 | 60360 | 60360 | 60360 | 60360 | 60360 | 60360 |
Kuchlanish: DC12.0V kirish motor 11170 (11 #) | |||||||||
Qutqarish koeffitsienti | 1 sentyabr10 | 1 sentyabr20 | 1:35 | 1-663 | 1 asr86 | 1: 115 | 1: 150 | 1: 250 | 1: 360 |
Yuklamaydigan oqim (mA) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 |
Yuklanish tezligi (ay / min) | 1680 yil | 840 yil | 480 | 266 | 195 | 146 | 112 | 67 | 47 |
Nominal moment (g.cm) | 90 | 180 | 315 | 567 | 774 | 1035 yil | 1350 yil | 2250 yil | 3240 yil |
Nomlangan yuk tezligi (rpm) | 1450 yil | 725 | 414 | 230 | 168 | 126 | 96 | 58 | 40 |
Nominal yuklanish oqimi (mA) | 50250 | 50250 | 50250 | 50250 | 50250 | 50250 | 50250 | 50250 | 50250 |
Otish momenti (kg.sm) | ≥0,8 | ≥1.6 | ≥2,8 ga teng | maksimal moment 3.0kg.cm | |||||
To'xtash oqimi (mA) | ≤1450 | ≤1450 | ≤1450 | ≤1450 | ≤1450 | ≤1450 | ≤1450 | ≤1450 | ≤1450 |
Kuchlanish: DC24.0V kirish motor 07340 (34 #) | |||||||||
Qutqarish koeffitsienti | 1 sentyabr10 | 1 sentyabr20 | 1:35 | 1-663 | 1 asr86 | 1: 115 | 1: 150 | 1: 250 | 1: 360 |
Yuklamaydigan oqim (mA) | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 |
Yuklanish tezligi (ay / min) | 1600 | 800 | 456 | 252 | 185 | 138 | 105 | 64 | 44 |
Nominal moment (kg.sm) | 0,09 | 0,18 | 0,32 | 0,55 | 0,75 | 1.00 | 1.35 | 2.00 | 2.00 |
Nomlangan yuk tezligi (rpm) | 1200 ga teng | 600 | 340 | 180 | 130 | 100 ga | 80 | 58 | 30 |
Nominal yuklanish oqimi (mA) | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 | ≤200 |
Avtotransport momenti (sm | ≥0.4 | ≥0,8 | ≥1.3 | ≥2.5 | maksimal moment 2,5kg.cm | ||||
To'xtash oqimi (mA) | 00500 | 00500 | 00500 | 00500 | 00500 | 00500 | 00500 | 00500 | 00500 |
Qadoqlash va etkazib berish
QADOQLANISH:
Standart eksport karton qadoqlash.
YETKAZISH VAQTI:
Buyurtma tasdiqlangandan keyin 3-20 kun o'tgach, batafsil etkazib berish sanasi shunga ko'ra qaror qilinishi kerak
ishlab chiqarish mavsumi va buyurtma miqdori.
DIQQAT:
Agar maxsus bojxona rasmiylashtiruvi hujjatlari talab etilsa, tasdiqlash uchun iltimos, biz bilan oldindan bog'laning.
